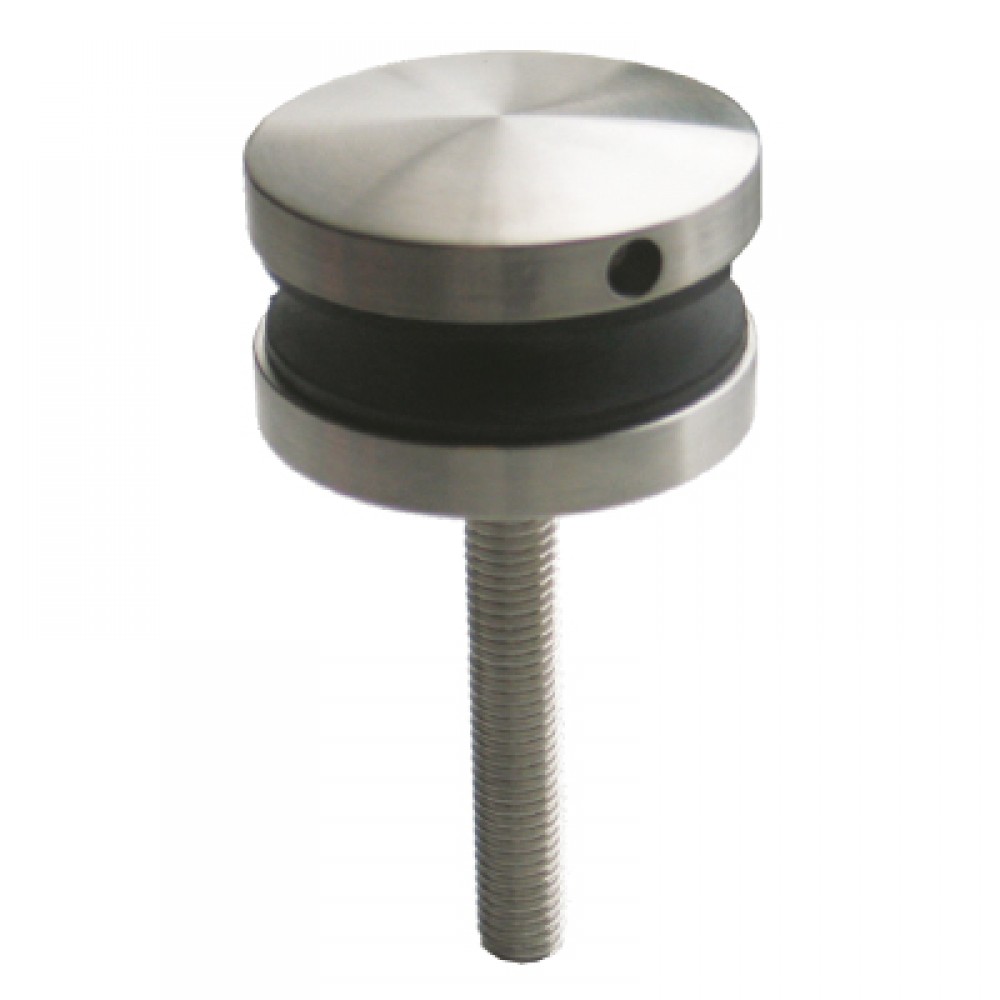

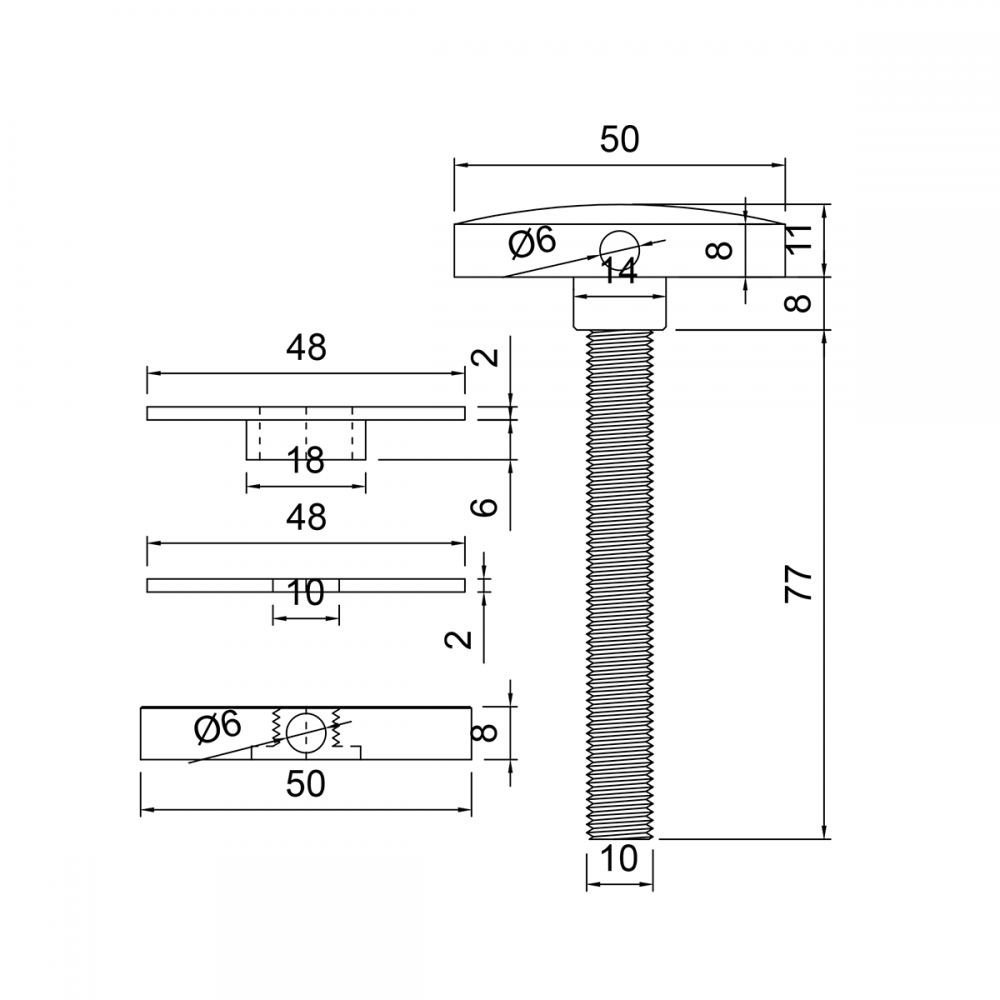

50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)

50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)
50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)
50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)
50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)
50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)
50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)
50mm Point Fixture M10 x 90 Bolt-304 SSS (Certified)

Description

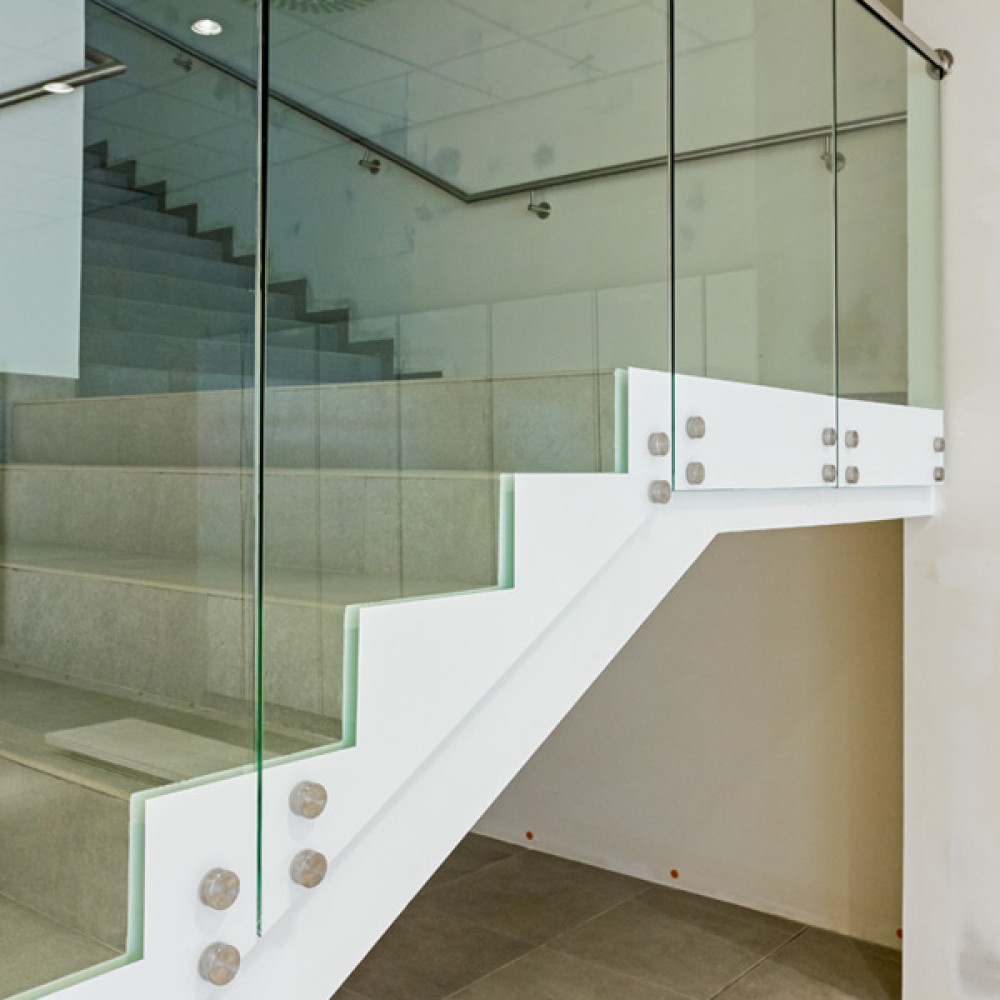

  • Stainless steel point fixture suitable for mounting glass panels both vertically and horizontally.

  • Supplied as standard with a 90mm long threaded bar. To use these in wood you will require a double hanger bolt such as K17154509, K17154510 or K17154511, purchased separately

  • Drill 20mm diameter hole in the glass.

  • These fixings have been tested up to a 3kN line load in certain combinations and glass thicknesses.

  • Test results available on request.

  • Suitable for 10mm up to 21.5mm thick glass.

  • may also be known as Glass Adapters or Glass Rail Standoffs

  • Optional extra M10 wood fixings at various lengths also available.
Product Details
Product Code K17154512
Unit Of Sale Each
£11.06 Ex. VAT

Available Options

Add to Cart Request A Quote
Trade Price Click here to login
Compare this Product
Spigots Spigots
Balustrade Balustrade
Crystal View Crystal View
Point Fixings Point Fixings
Easy Rail Easy Rail
BALUSTRADE DESIGNER
Quickview
10mm Adjustment Spanner For POSIglaze, POSIone & Spig-Lite
Product code: KCV008
10mm Adjustment Spanner For POSIglaze, POSIone & Spig-Lite
10mm Adjustment Spanner For POSIglaze, POSIone & Spig-Lite Advanced System Specially designed spanner used for tightening and adjusting the glass in ..
£5.60 Ex. VAT
Trade priceLOG IN
Add to Cart
Compare this Product
Quickview
POSIglaze 3 Mtr Surf. Mount Kit For17.5mm Glass, Brush Alum POSIglaze 3 Mtr Surf. Mount Kit For17.5mm Glass, Brush Alum
Product code: KCVSUKIT.017
POSIglaze 3 Mtr Surf. Mount Kit For17.5mm Glass, Brush Alum
Also known as Crystal View, one of the most popular glass balustrade systems in the UK. Very popular with installers due to the simplicity of the ins..
£287.50 Ex. VAT
Trade priceLOG IN
Add to Cart
Compare this Product
Quickview
C-Spanner For 45-50mm Fixings (Hook Wrench With Pin)
Product code: K999.050
C-Spanner For 45-50mm Fixings (Hook Wrench With Pin)
..
£20.79 Ex. VAT
Trade priceLOG IN
Add to Cart
Compare this Product
Quickview

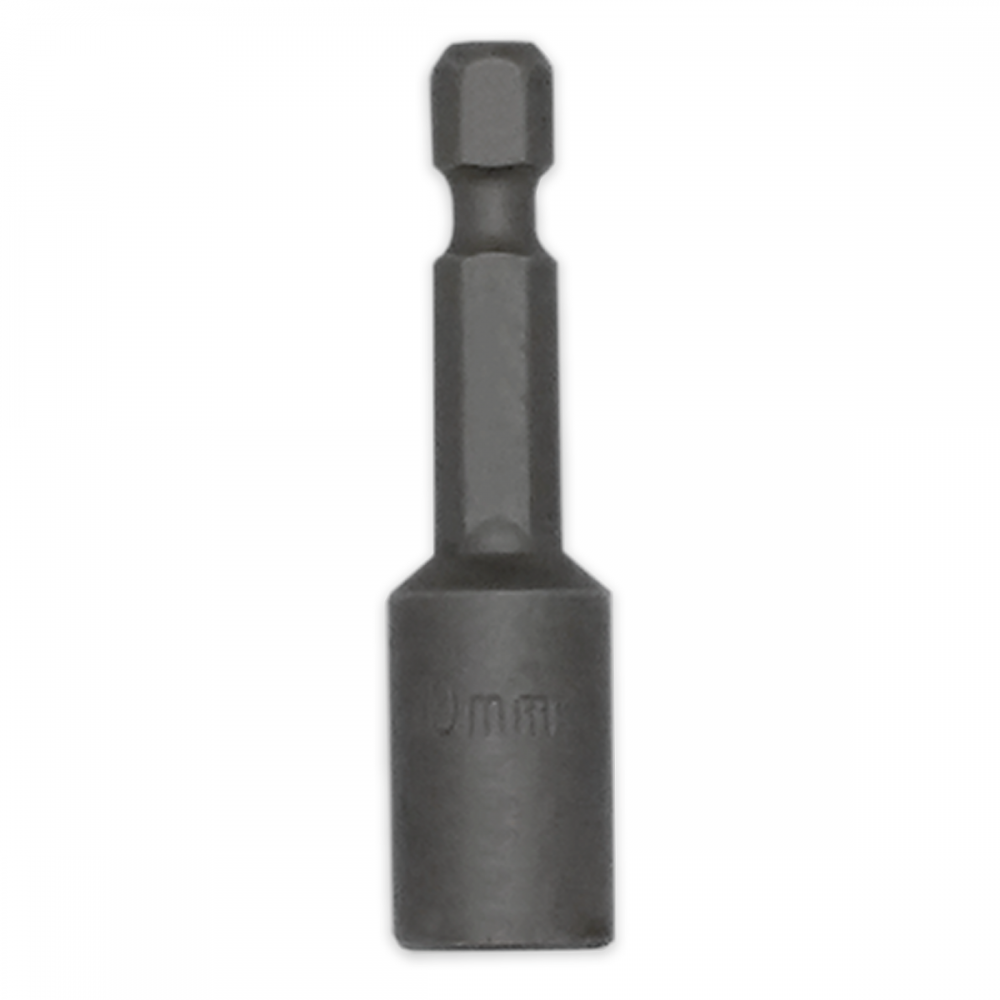

Tool For Inserting Hanger Bolt M10 Tool For Inserting Hanger Bolt M10
