Description

  • The hydraulic patch fitting on the bottom is ideal for use where raised access floors are in use or where a door closing solution is needed but digging out for a floor spring is not suitable.
  • This new kit includes the bottom hydraulic patch fitting and mounting plate, the top patch fitting to match and top pivot.
  • Easy installation with base seat adjustable: +3mm backward and forward, +3mm left and right and 4 degree alignment adjustment.
  • This hydraulic patch fitting complies with EN1154 unlike some others on the market.
  • Hold open at 90°

    • Specification
    • Door Width: 750mm - 1000mm
    • Glass Thickness: 8 - 12mm
    • Max Door Weight: 100kg
    • Finish: Satin Stainless Steel

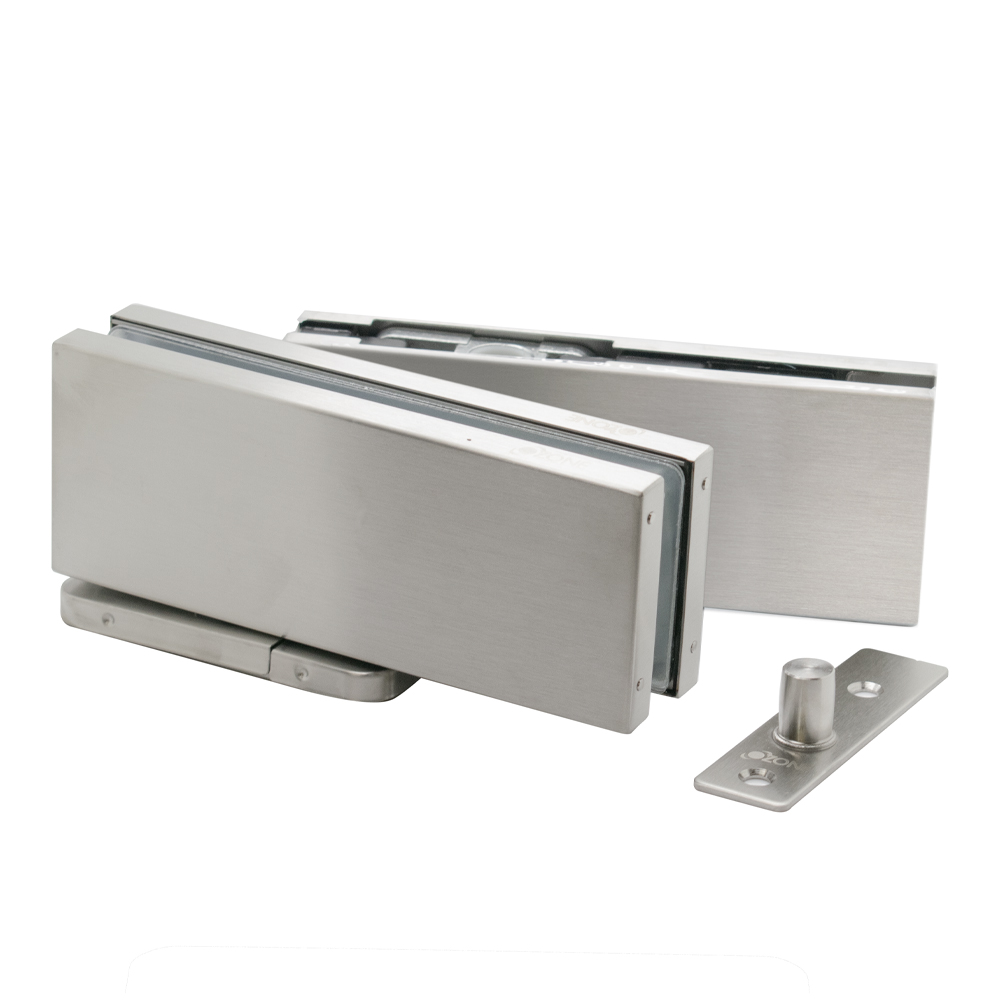

    Kit Parts
    • Top Pivot - K9124
    • Top Patch - KGT20SS-PLUS
    • Bottom Patch - KGT10SS-AUTO100

Product Details
Product Code KDKIT001
Unit Of Sale Kit
£138.60 Ex. VAT
Add to Cart Request A Quote
Trade Price Click here to login
Compare this Product
File Name Size Link
KDKIT001_KGT10SS-105_KGT10SS-AUTO135_Install.pdf 860.49KiB Download
