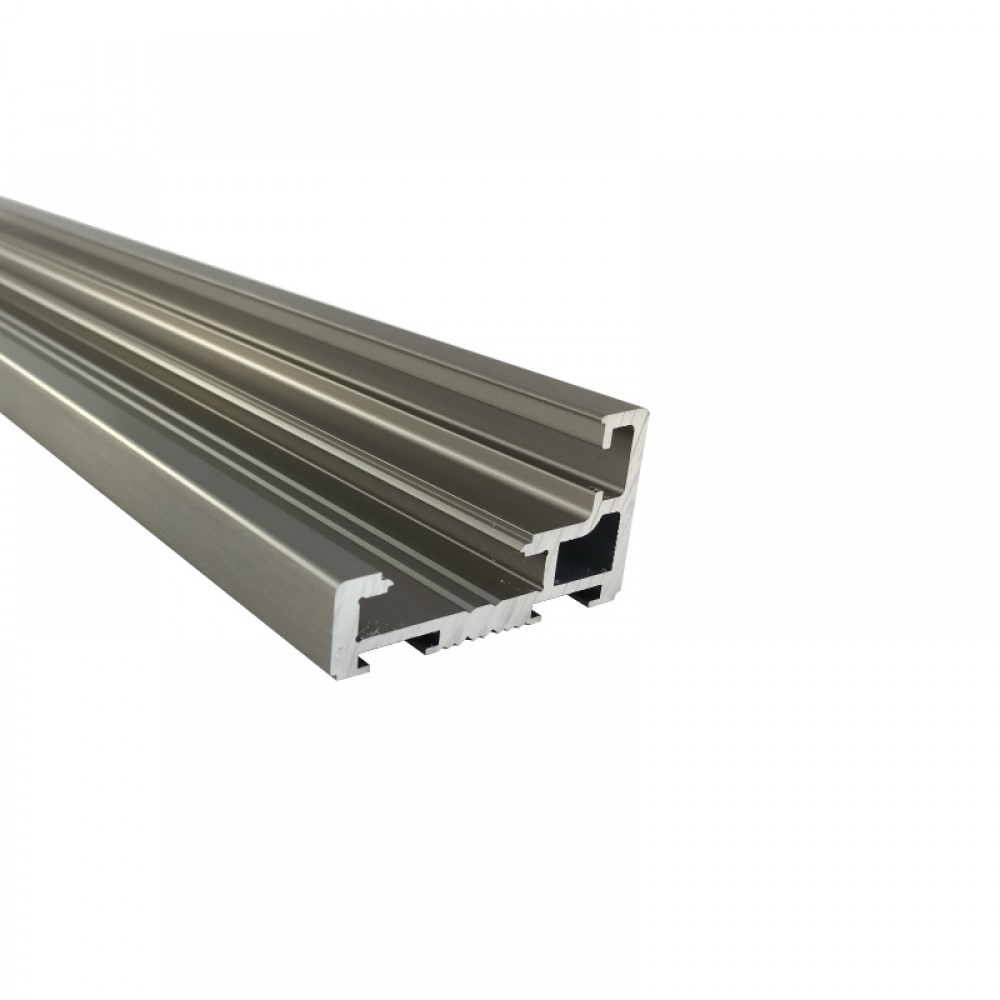

L Type Door Frame - Anodised
L Type Door Frame - Anodised
Description

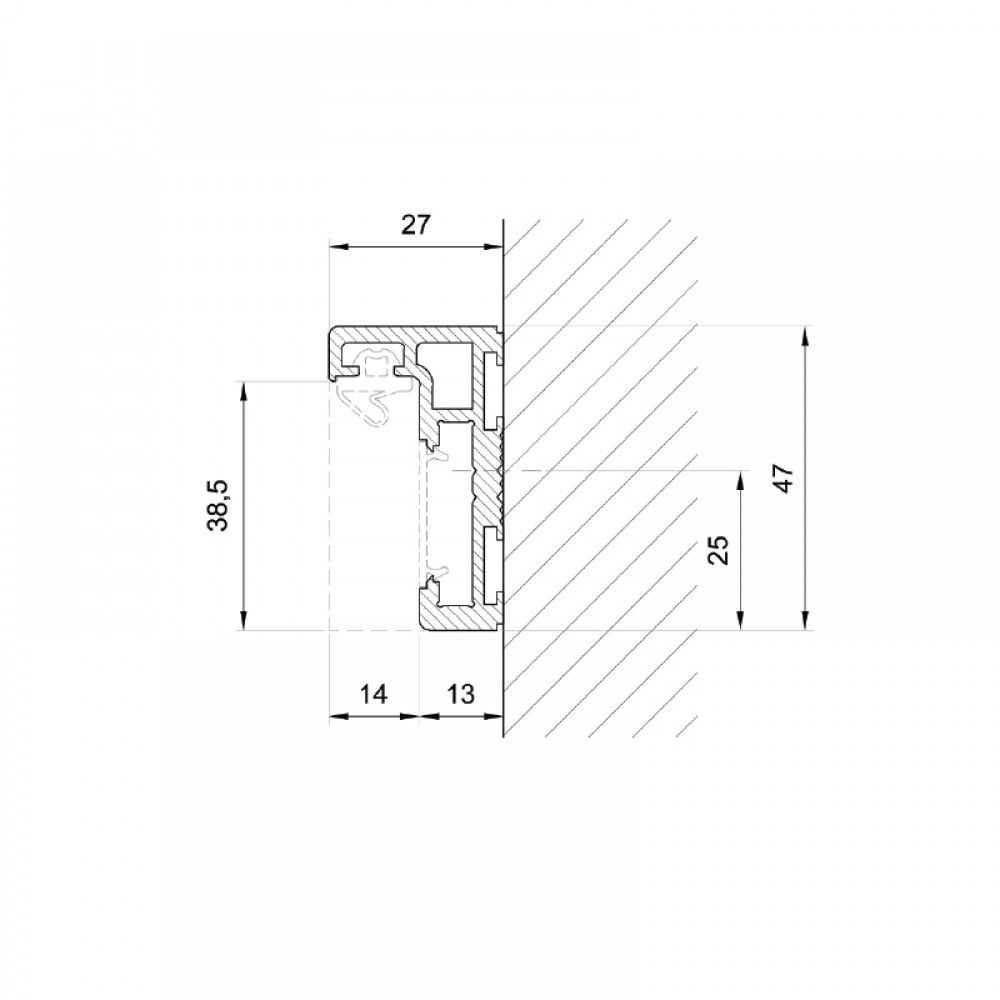

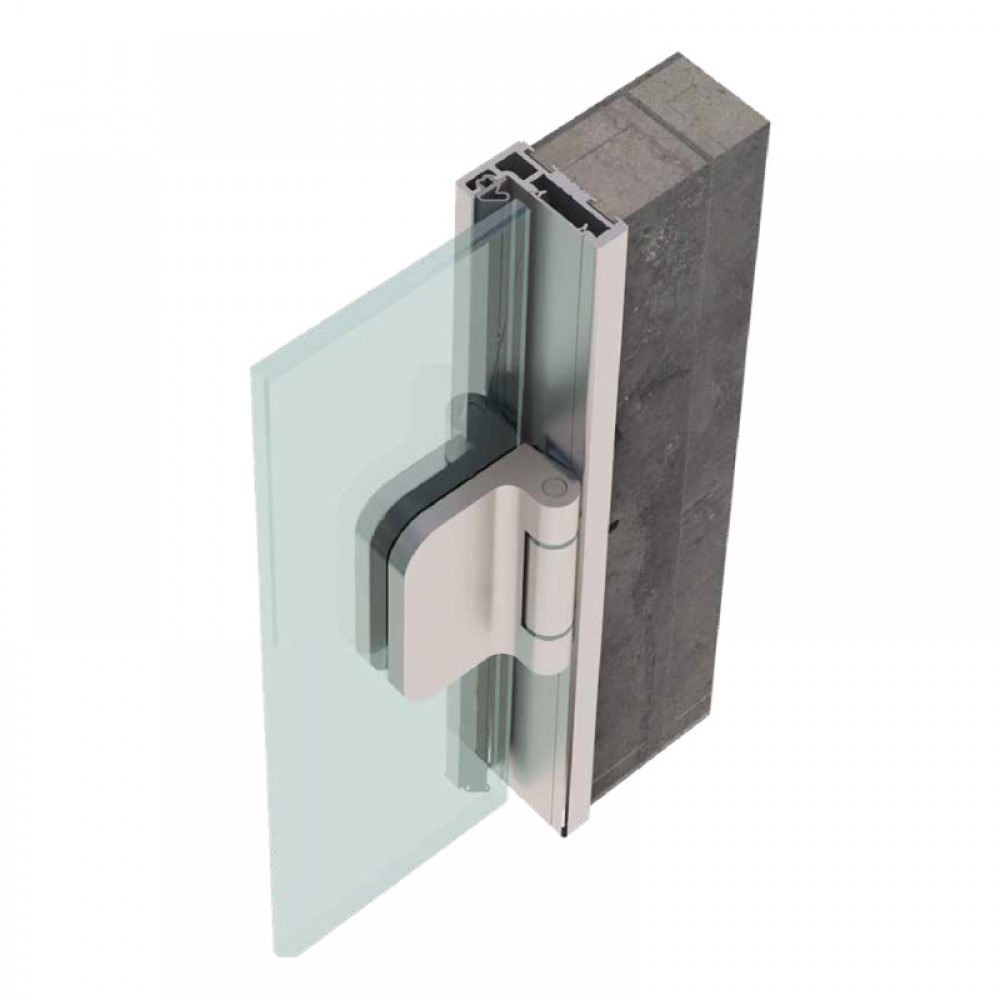

- The L-type aluminium door frame with integrated hinge & receiver profile is suitable for glass thicknesses of 8-10mm. The recommended max door height is 2400mm. Above a height of 2200 mm, it is recommended to use 3 hinges.
- This profile is designed in a L type shape to sit in any reveal size over 50mm and create a rebate for the glass door to reduce both noise and air movement.
- Installing of the hinges requires no drilling or milling and they can be adjusted in seconds which makes this system a favourite for the installer.
| Product Details | |
| Product Code | G.DK.SG.SA.004 |
| Unit Of Sale | 6 Metres |
£127.95 Ex. VAT
Available Options
Product code: G.DK.AC.003
Designed to reinforce the corners of the assembled door frame ensuring tight and closed joints.
One kit required per door frame...
£10.00 Ex. VAT
Product code: G.DK.SG.SA.007
The door frame filler strip is cut and easily snapped in to place to cover the hinge and receiver tracks on all the door frame profiles.
Cut and snap ..
£17.99 Ex. VAT
Product code: G.DK.SG.SA.008
The Round integrated door hinges work with the H-type, Z- type and L-type aluminium door frames and are suitable for glass thicknesses of 8-10mm.
The ..
£43.99 Ex. VAT
Product code: G.DK.SG.SA.008.SQ
The Square integrated door hinges work with the H-type, Z- type and L-type aluminium door frames and are suitable for glass thicknesses of 8-10mm.
The..
£43.99 Ex. VAT
Product code: KLL501KF-NA
Prepared for both 8mm and 10mm glass thickness.Prepared for europrofile cylinder, night latch function.Prepared square hole for all lever handles with..
£13.33 Ex. VAT
Product code: KLL501M-NA
Suitable for both 8mm and 10mm glass thickness.
Prepared for europrofile cylinder, night latch function.Prepared square hole for all lever handles w..
£68.95 Ex. VAT
Product code: KLLD.DK.02.NA
Supplied in SUS 304 Stainless Steel.
8mm square spindle for all lever
locks.
Suitable for use with the
magnetic locks on page 59 & 60
only...
£31.99 Ex. VAT
Product code: K9125ST.DK.01
Suitable for use with the Magnetic Catch Lever Locks KLL501M-B & KLL501M-NA..
£15.33 Ex. VAT
Product code: KH22BSS
All handles are manufactured by using High Gade SUS 304 Stainless Steel tube and polished meticulously.Dimensions L - 1000mm Hole Centers - 600mmD - 3..
£112.14 Ex. VAT
Product code: G.DK.SG.SA.007
The door frame filler strip is cut and easily snapped in to place to cover the hinge and receiver tracks on all the door frame profiles.
Cut and snap ..
£17.99 Ex. VAT
Product code: G.DK.AC.003
Designed to reinforce the corners of the assembled door frame ensuring tight and closed joints.
One kit required per door frame...
£10.00 Ex. VAT
Product code: E0013
Glazing shovels are an essential tool for
installation of sealed double-glazed units
and to toe-and-heel windows and doors.
Made using a heavy-duty pl..
£4.95 Ex. VAT
Product code: B0085
The ideal tool for pulling together or spreading apart flat, smooth sheets of material.
Suitable for all materials with smooth surfaces like glass, pl..
£73.71 Ex. VAT
