L Type Door Frame - Black
L Type Door Frame - Black
Description

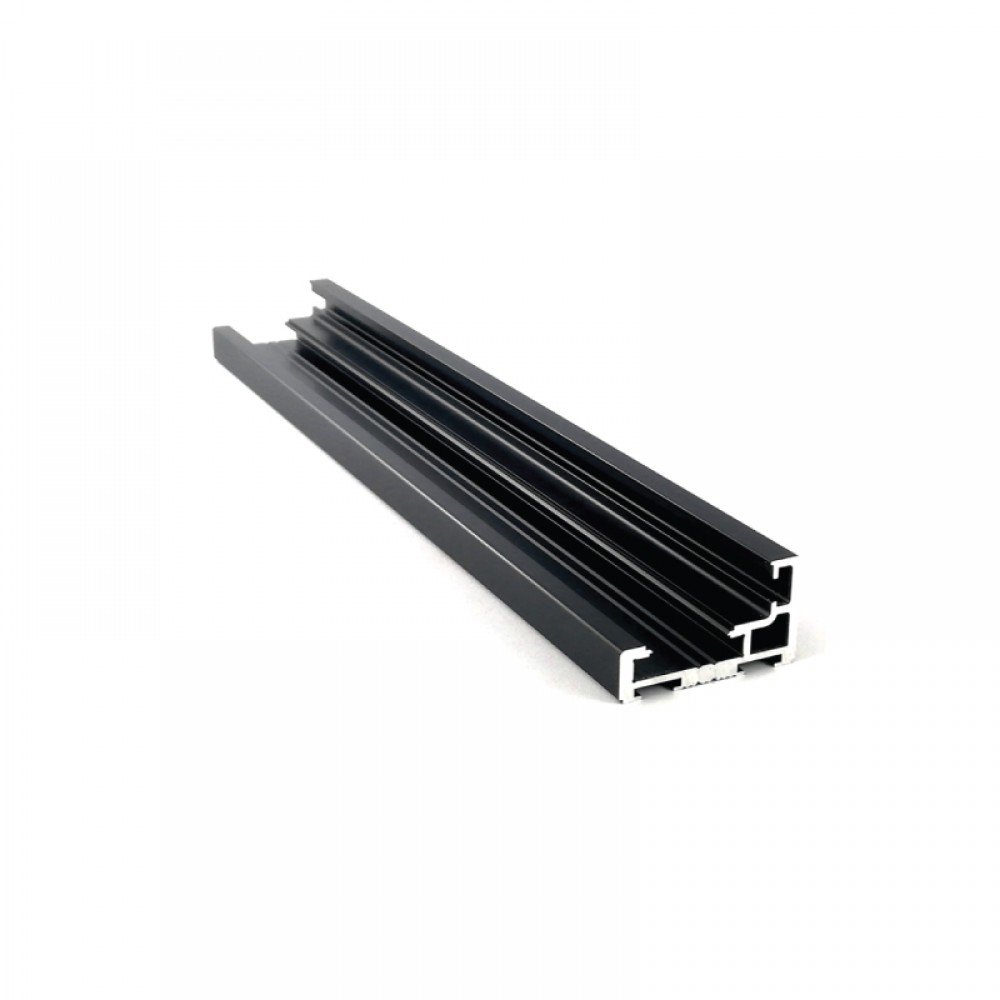

- The L-type aluminium door frame with integrated hinge & receiver profile is suitable for glass thicknesses of 8-10mm. The recommended max door height is 2400mm. Above a height of 2200 mm, it is recommended to use 3 hinges.

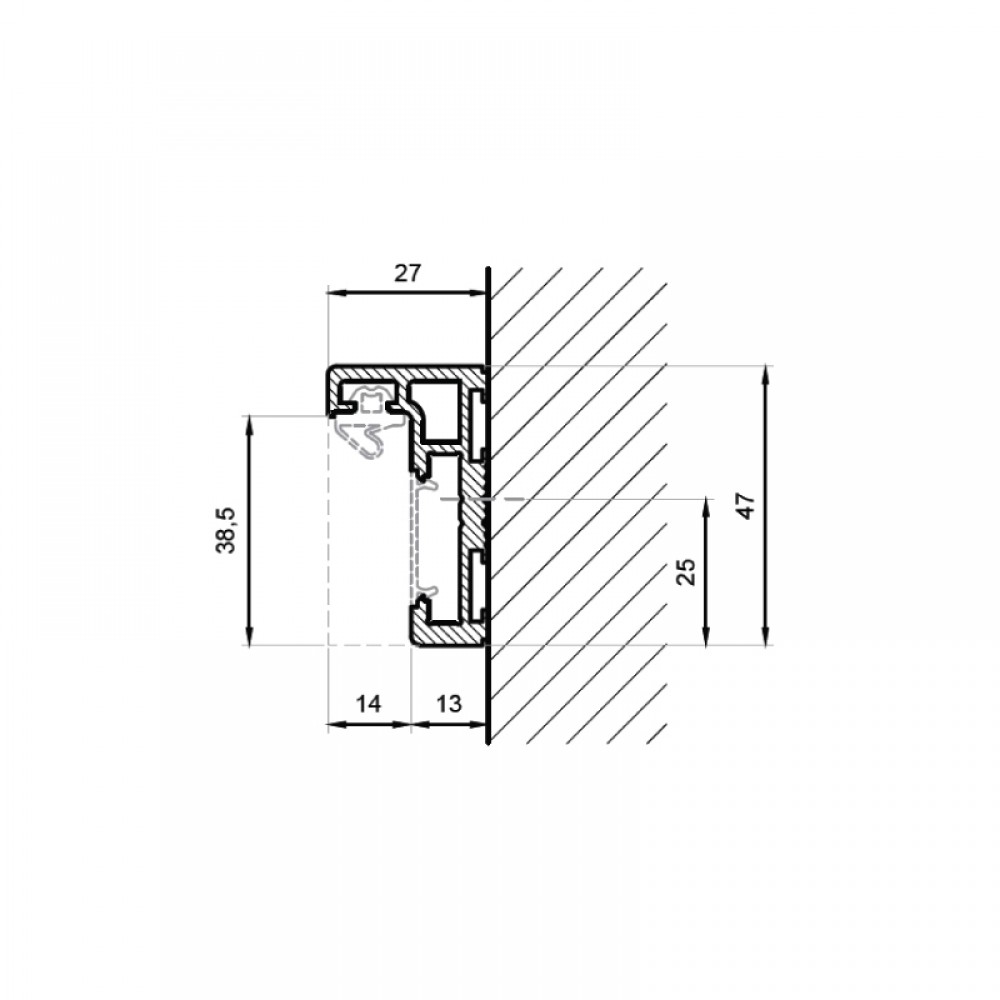

- This profile is designed in a L type shape to sit in any reveal size over 50mm and create a rebate for the glass door to reduce both noise and air movement.

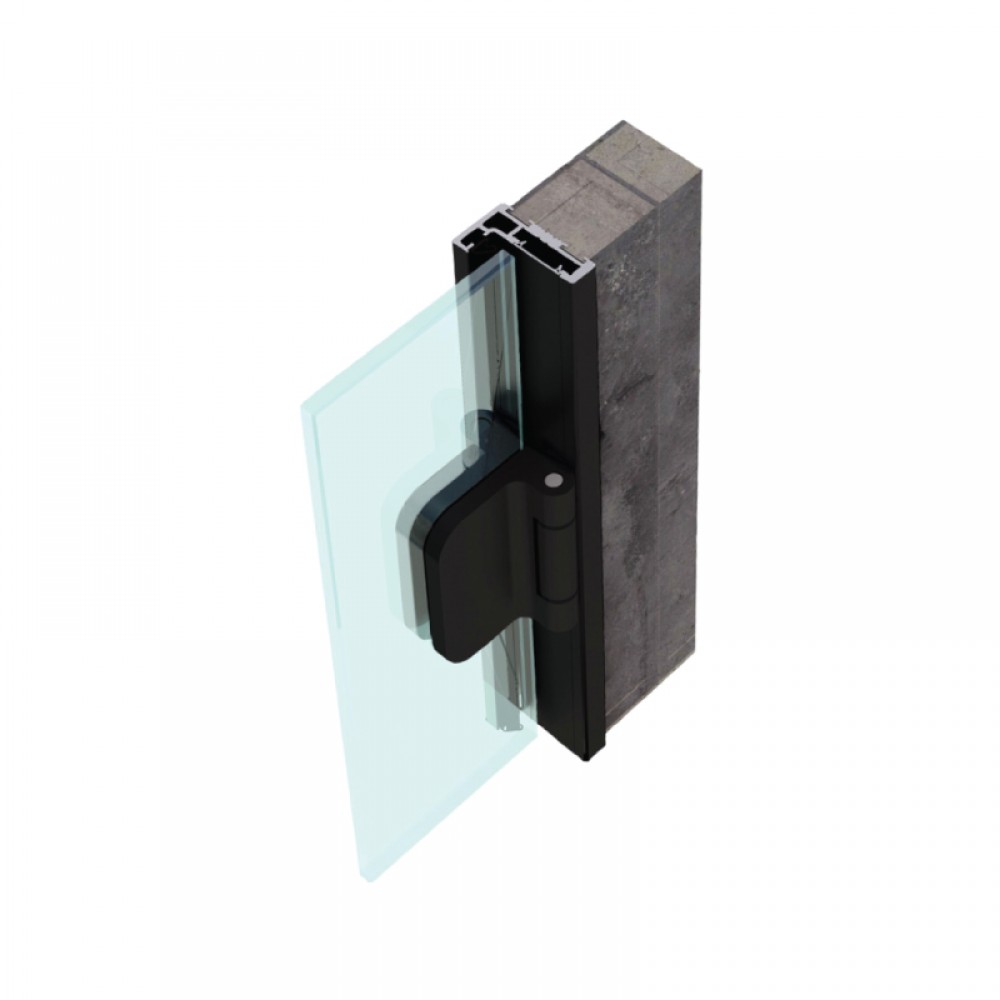

- Installing of the hinges requires no drilling or milling and they can be adjusted in seconds which makes this system a favourite for the installer.
| Product Details | |
| Product Code | G.DK.SG.BK.004 |
| Unit Of Sale | 6 Metres |
£135.94 Ex. VAT
Available Options
Product code: G.DK.AC.003
Designed to reinforce the corners of the assembled door frame ensuring tight and closed joints.
One kit required per door frame...
£10.00 Ex. VAT
Product code: G.DK.SG.BK.007
The door frame filler strip is cut and easily snapped in to place to cover the hinge and receiver tracks on all the door frame profiles.
Cut and snap ..
£24.66 Ex. VAT
Product code: G.DK.SG.SA.007
The door frame filler strip is cut and easily snapped in to place to cover the hinge and receiver tracks on all the door frame profiles.
Cut and snap ..
£17.99 Ex. VAT
Product code: G.DK.LOFT.004
Specially designed to work in harmony with the loft style perimeter profile...
£59.98 Ex. VAT
Product code: G.DK.LOFT.001
Loft style perimeter U profile.
Suitable for 8mm glass thickness.
Easily attached to the glass with suitable adhesive/silicone. Mitre the corners at 4..
£21.33 Ex. VAT
Product code: G.DK.LOFT.004
Specially designed to work in harmony with the loft style perimeter profile...
£59.98 Ex. VAT
Product code: G.DK.SG.BK.007
The door frame filler strip is cut and easily snapped in to place to cover the hinge and receiver tracks on all the door frame profiles.
Cut and snap ..
£24.66 Ex. VAT
Product code: G.DK.AC.028
Double glazed door frame cleat kit available in Stainless Steel.
Used to securely assemble the door frame in order to keep the joints tight and secure..
£15.99 Ex. VAT
Product code: G.DK.AC.011
Gaskets used where the glass door meets the aluminium rebate of the door frame profile ensuring a soft close and reduced noise and air movement.
Avail..
£2.93 Ex. VAT
























-1000x1000.jpg)













































-1000x1000.jpg)







Print/View Web Product Sheet
