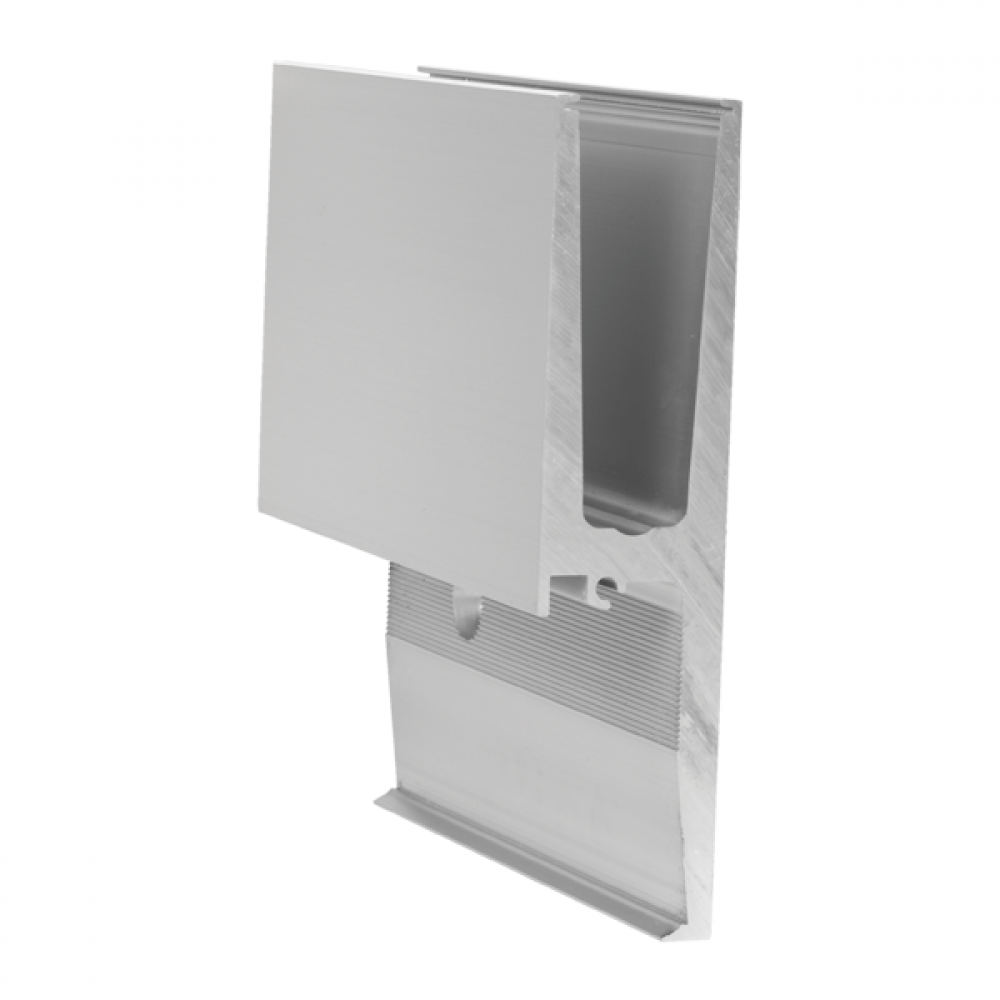

OnLevel 3011 Side Mount Channel - 0.74kN

Description

Suitable for line loads up to 3kN in accordance with BS6180.

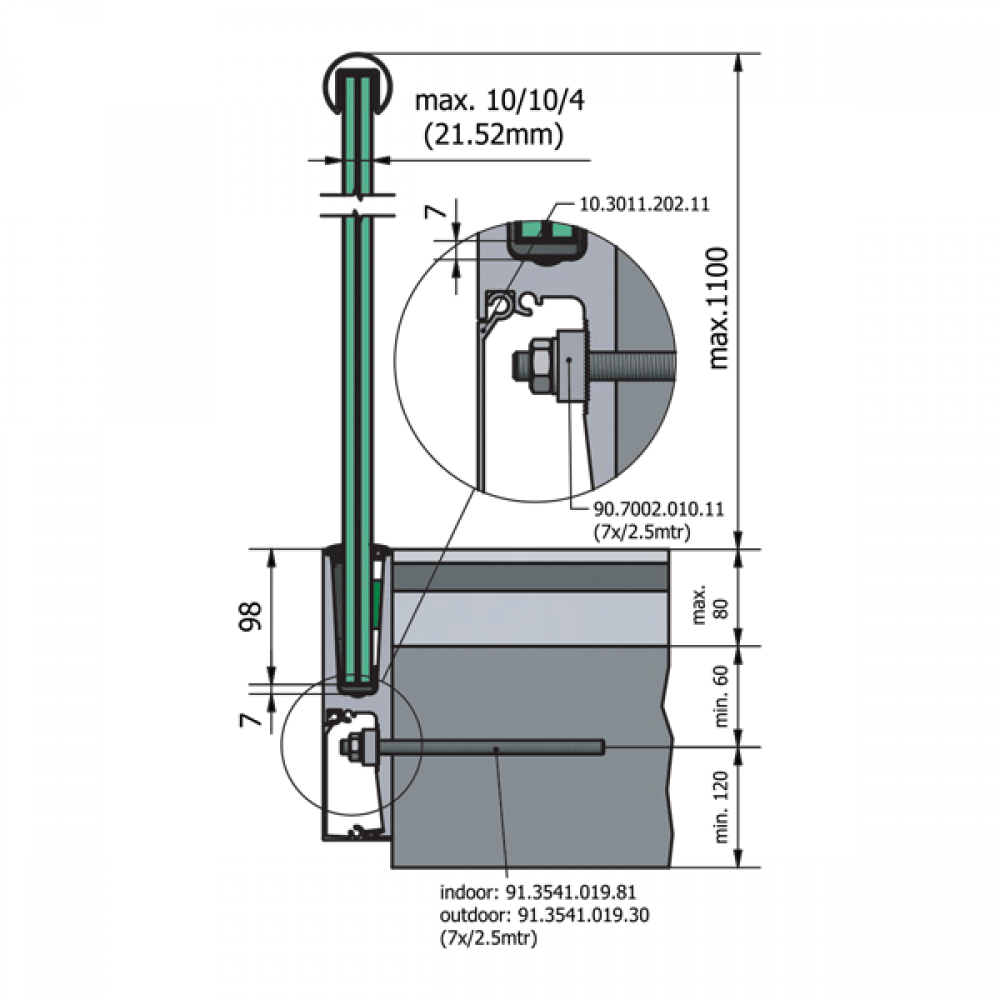

Using the Flex-Fit System, the installation can be done from one side only and glass adjusted accordingly.

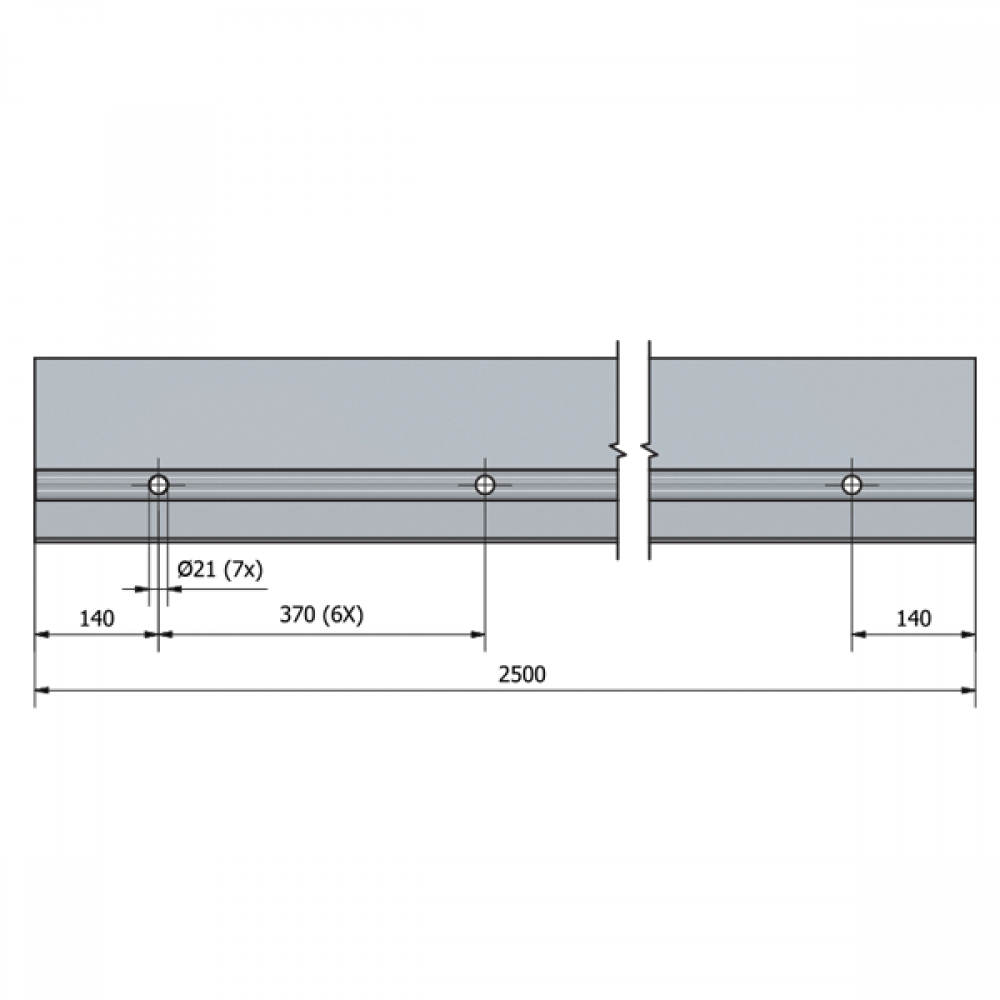

Pre drilled every 300mm and suitable for an M16 fixing.

Supplied in plain anodised aluminium in 2.5 metre lengths.

Product Details
Product Code	K.ON.10.3011.002.11
Unit Of Sale	2.5 Mtr

£423.06 Ex. VAT

Qty

Add to Cart Request A Quote

Buy Now

Compare this Product

Product Downloads

Print/View Web Product Sheet
